Home > Duplex Steel >Duplex Steel 2205 Flanges
| Specifications | ASTM A182 / ASME SA182 |
| Size | 1/8″ NB TO 24″ NB |
| Standards | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc |
| Grades | S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 – 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32205 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
At Sumakhsteel, we are proud to be the largest supplier and manufacturer in the USA, delivering advanced solutions for every piping requirement. With modern manufacturing facilities strategically positioned across the USA, we maintain an extensive stock of more than 25,000 tons of top-grade materials kept ready in inventory.
Reach out to us for a fast quote tailored to your requirement.
We provide these Duplex Steel S32205 Flanges conforming to DIN, ISO, JIS or ANSI Standard.

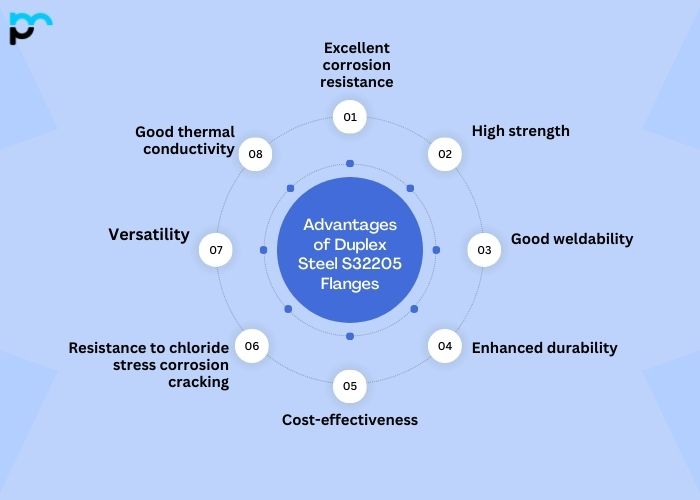

Corrosion Resistance: Duplex Steel S32205 Flanges provide outstanding corrosion resistance across a range of corrosive settings, including chloride-bearing environments such as seawater, brine solutions, and chemical processing conditions. This corrosion resistance contributes to prolonging the flanges’ service life, lowering maintenance expenses, and guaranteeing dependable performance under severe conditions.
High Strength: Duplex Steel S32205 Flanges demonstrate substantial mechanical strength, enabling them to endure high-pressure and high-temperature uses without sacrificing structural integrity. Their excellent strength-to-weight ratio makes them appropriate for critical uses where strength and durability are vital necessities.
Versatility: Duplex Steel S32205 Flanges provide adaptability regarding their uses owing to their blend of characteristics, including corrosion resistance, high strength, and weldability. They are applicable across a broad spectrum of industries and uses, including chemical processing, petrochemical, offshore, marine, and power generation industries.
Cost-Effectiveness: Notwithstanding their outstanding characteristics, Duplex Steel S32205 Flanges deliver cost-effectiveness relative to other corrosion-resistant alloys such as austenitic stainless steels and nickel alloys. Their extended service life, diminished maintenance needs, and reduced lifecycle costs help generate overall cost savings for the end-user.
Weldability: Duplex Steel S32205 Flanges display good weldability, permitting straightforward fabrication and installation within various piping systems and structures. They can be joined by welding using standard welding methods, including gas tungsten arc welding (GTAW), gas metal arc welding (GMAW), and shielded metal arc welding (SMAW), without the danger of sensitization or degradation of corrosion resistance.
Resistance to Chloride Stress Corrosion Cracking: Duplex Steel S32205 Flanges deliver remarkable resistance to chloride-induced stress corrosion cracking, making them well-suited for deployment in chloride-heavy settings such as coastal areas, marine applications, and chemical processing plants. This resistance assists in preserving the integrity and dependability of the flanges even within aggressive environments.
Duplex Steel S32205 Flanges are widely used across numerous industries thanks to their outstanding characteristics. Within the oil and gas sector, these flanges are frequently used on offshore drilling platforms, subsea pipelines, and refining facilities, where they deliver dependable connections that withstand corrosive seawater and demanding environments. Likewise, in chemical processing plants, they serve a vital function in reactors, storage tanks, and piping systems, providing protection against corrosive chemicals and elevated temperatures.
Oil and Gas Industry: Duplex Steel S32205 Flanges are widely applied in offshore drilling rigs, subsea pipelines, and oil refining plants because of their outstanding corrosion resistance against seawater, brine solutions, and acidic conditions. They deliver dependable connections for piping systems, valves, and equipment in demanding offshore settings.
Chemical Processing: Within chemical processing facilities, Duplex Steel S32205 Flanges serve in numerous roles including chemical reactors, storage tanks, and process piping systems. Their ability to withstand corrosive chemicals and elevated temperatures makes them well-suited for managing aggressive acids, alkalis, and solvents.
Petrochemical Industry: Duplex Steel S32205 Flanges are used in petrochemical refineries to join pipelines, heat exchangers, and pressure vessels. They provide resistance to corrosion caused by hydrocarbons, hydrogen sulfide, and chloride-containing compounds that are frequently present in petrochemical operations.
Power Generation: At power generation plants, Duplex Steel S32205 Flanges are used in steam turbines, boiler feedwater systems, and heat exchangers thanks to their tolerance of high temperatures and steam corrosion. They supply dependable connections for critical components in power stations, guaranteeing efficient performance and long service life.
Desalination Plants: Duplex Steel S32205 Flanges are applied in desalination plants for seawater intake and brine discharge systems. Their resistance to chloride-induced corrosion and stress corrosion cracking makes them appropriate for seawater desalination processes, where reliability and durability are crucial.
Corrosion Resistance: Assess how well Duplex Steel S32205 Flanges withstand corrosion, especially in settings where contact with corrosive agents like chloride, acids, and alkalis frequently occurs. Confirm that the flanges possess adequate corrosion resistance to preserve their integrity and durability under demanding conditions.
Temperature and Pressure Ratings: Identify the temperature and pressure demands of the application in order to choose Duplex Steel S32205 Flanges with suitable ratings. Make sure the flanges can endure the operating temperatures and pressures without sacrificing performance or safety.
Size and Dimensional Requirements: Take into account the size and dimensional details of the flanges to guarantee they fit with current piping systems, valves, and equipment. Pick flanges with the right size, diameter, and thickness to enable proper installation and connection.

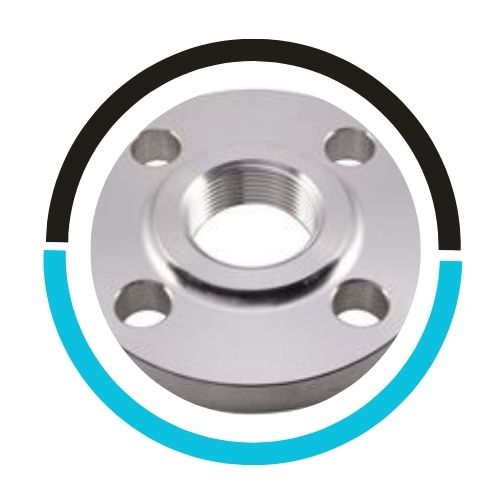

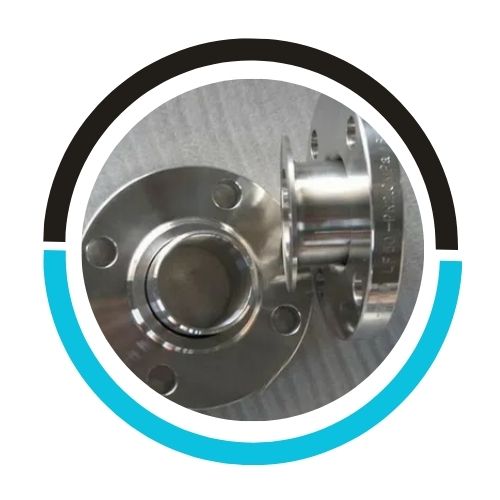

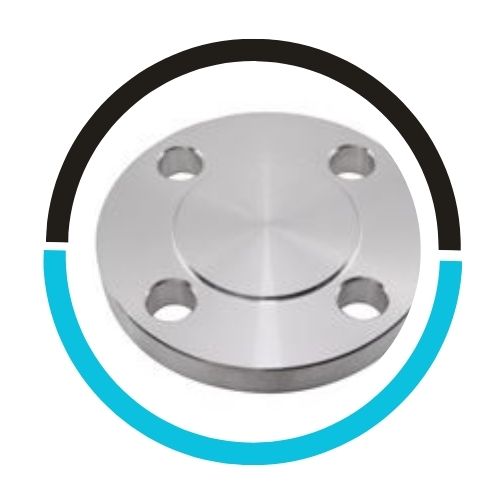

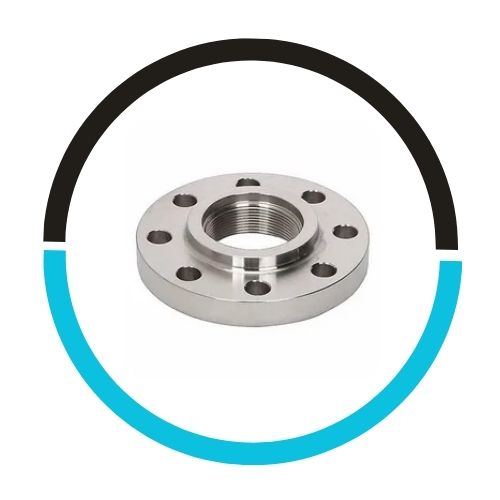

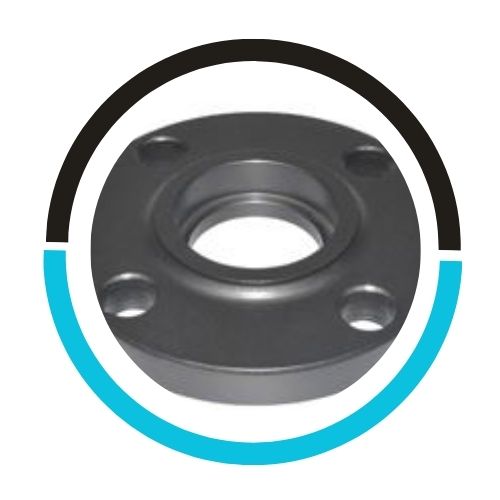

Flange Type and Configuration: Select the suitable flange type and configuration according to the particular needs of the application. Frequently used types include weld neck, slip-on, threaded, socket weld, and blind flanges, each providing distinct characteristics and benefits based on the installation and operational requirements.
Standards and Specifications: Confirm that the Duplex Steel S32205 Flanges meet applicable industry standards and specifications, including ASTM, ASME, ANSI, and DIN standards. Complying with these standards guarantees product quality, performance, and safety.
Yes, Duplex Steel S32205 Flanges are appropriate for welding. A range of welding techniques, such as Shielded Metal Arc Welding (SMAW), Gas Tungsten Arc Welding (GTAW), Gas Metal Arc Welding (GMAW), and Flux-Cored Arc Welding (FCAW), can be employed to join Duplex Steel S32205 Flanges.
When welding Duplex Steel S32205 flanges, a number of precautions should be observed to achieve successful welding and preserve the integrity of the material. First, it is vital to clean the surfaces completely to eliminate any contaminants that might compromise the weld quality. Furthermore, choosing suitable welding parameters, such as heat input and travel speed, is essential to avoid overheating and prevent the formation of detrimental phases like sigma phase.
The pressure and temperature ratings of Duplex Steel S32205 flanges differ based on factors like the flange type, size, and the requirements of the specific application. In general, Duplex Steel S32205 flanges are built to endure high-pressure and high-temperature conditions, which makes them appropriate for a broad array of industrial uses.
Yes, Duplex Steel S32205 flanges can be obtained in a range of sizes and types to match diverse applications and installation needs. These flanges are offered in multiple dimensions, spanning from small nominal sizes to larger diameters, in order to fit different pipe sizes and system configurations.
