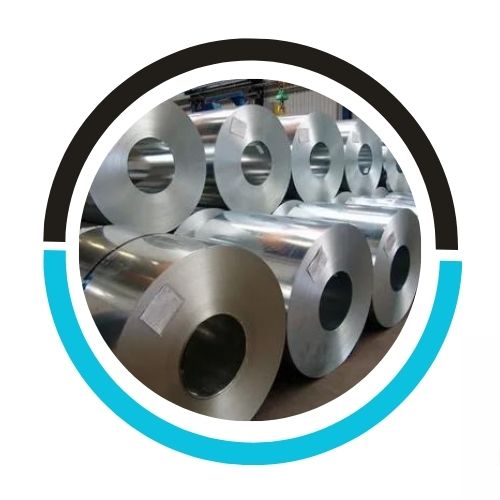

Home > Duplex Steel >Duplex Steel S31803 Coils
| Standard | ASTM A240 / ASME SA240 |
|---|---|
| Thickness | 0.2mm – 5.0mm |
| Width | 3.2mm – 1500mm |
| Length | AS PER CUSTOMER’S REQUIREMENT |
| Test Certificate | Yes |
| Coils Hardness | Half Hard, Quarter Hard, Soft, Hard, Spring Hard |
| Finish | Hot rolled Coils (HR), Cold rolled Coils (CR), NO.1, 2B, 2D, 2H, 2R, No.4, HAIRLINE, SCOTCH BRITE, SATIN FINISH, NO.8, BA. |
| Form | Coil / Strip |
| Make | Jindal, Bahru, Posco Korea, Posco Thainox, Columbus, Acerinox, Aperam, Tisco, Nisshin, Nippon And Many More Mills. |
| rades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S31803 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S31803 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 22.0 – 23.0 | 3.0 – 3.5 | 4.50 – 6.50 | 0.14 – 0.20 | 63.72 min |
At Sumakhsteel, we take pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for all your piping requirements. With cutting-edge production facilities strategically situated in the USA, we maintain an extensive inventory of more than 25,000 tons of top-quality materials kept ready in stock.
Get in touch with us for a fast quote tailored to your needs.
Estas bobinas de acero dúplex S31803 se suministran conforme a la norma DIN, ISO, JIS o ANSI.

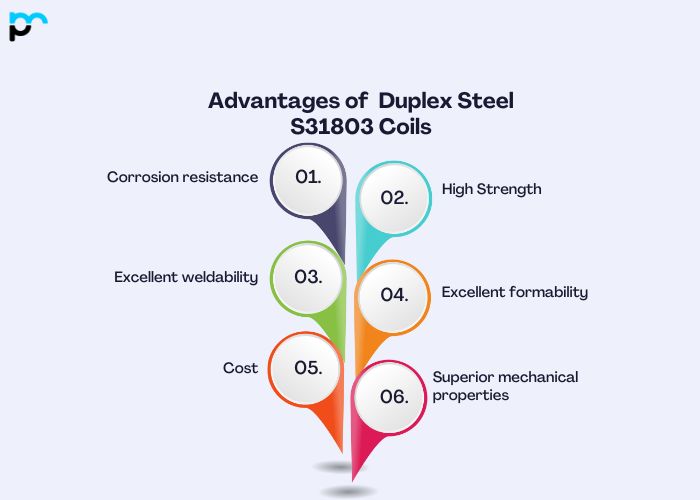

Corrosion resistance: Duplex steel S31803 offers outstanding resistance to corrosion, particularly in aggressive settings like those containing chlorides, acids, and alkalis, which makes it well-suited for the chemical, marine, and oil and gas sectors.
High Strength: These fibers demonstrate strong mechanical properties, enabling them to endure substantial loads and stresses. As a result, they are appropriate for architectural applications in fields such as construction and transportation.
Excellent weldability: In contrast to certain stainless steels, duplex steel S31803 welds readily without the danger of intergranular corrosion. This broadens its versatility and eases the fabrication of structures in varied shapes.
Excellent formability: Dual-steel S31803 coils can be shaped without difficulty into a range of sizes, permitting numerous intricate components and configurations
Cost: Even with its superior quality, duplex steel S31803 is generally more cost-effective than other corrosion-resistant materials, like austenitic stainless steel, particularly where high strength is needed. Its resistance to corrosion can result in lower maintenance and an extended service life
Duplex Steel S31803 Coils serve applications as varied as the industries they support, led chiefly by the aerospace, railway, construction and automotive industries along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Oil and Gas Industry: Duplex steel coils see broad use across the oil and gas sector in equipment like pipelines, offshore platforms and subsea components. Because they resist corrosion and offer high strength, they are environmentally friendly and help address the challenges of oil and gas exploration and production.
Chemical: In chemical plants, duplex steel coils serve in equipment such as reactors, heat exchangers and storage tanks. Water resistance to acids, chlorides and other chemicals is vital for guaranteeing the durability and dependability of these products.
Desalination Mechanisms: Growing demand for freshwater has made desalination mechanical devices necessary in numerous coastal regions. Duplex steel coils are employed in desalination plants thanks to their outstanding corrosion resistance in ambient seawater.
Power Generation: Power generation relies on double metal pipes for components like heat exchangers, boilers, and turbine systems. Their high strength, corrosion resistance and capacity to endure high temperatures make them well suited to such demanding applications.
Food Processing: Within the food processing industry, duplex steel coils are applied in equipment such as storage tanks, conveyors, and processing machinery. Their corrosion resistance and ability to uphold hygiene standards make them fit for handling food products.
Understanding Duplex Steel S31803: Get to know the properties of Duplex Steel S31803. This stainless steel is recognized for its outstanding resistance to corrosion, superior strength, and ease of welding.
Application Requirements: Define the particular needs of your application. Take into account operating temperature, pressure, atmospheric corrosion, and mechanical stress.
Grade selection: Duplex steel S31803 is a widely used grade, yet within this grade, differences in composition and quality can occur. Ensure that the coils you select also comply with the necessary standard specifications.
Size and thickness: Think about the dimensions and thickness of the coils required for your application, covering size, width, and length. Verify that the earrings come in the needed sizes or can be tailored to fit your requirements.
Floor finishes: Depending on both aesthetic and functional needs, choose the surface finish you require. Dual steel coils come in a range of finishes, such as hot-rolled, cold-rolled and polished.
