Home > Other Material > ASTM A193 B8T Stud Bolts
Material | Specification | Standards | Size | Length |
ASTM A193 B8T Fasteners
| IS BS ASTM | DIN, ISO, JIS, GB, IS, BS, ASTM | M 02 to M 160 | 3 mm to 200 mm |
| Grade | Size | Tensile ksi, min | Yield, ksi, min | Elong, %, min | RA % min |
| B7 | Up to 2-1/2 | 125 | 105 | 16 | 50 |
| 2-5/8 – 4 | 115 | 95 | 16 | 50 | |
| 4-1/8 – 7 | 100 | 75 | 18 | 50 | |
| B8 Class 1 | All | 75 | 30 | 30 | 50 |
| B8M Class 1 | All | 75 | 30 | 30 | 50 |
| B8 Class 2 | Up to 3/4 | 125 | 100 | 12 | 35 |
| 7/8 – 1 | 115 | 80 | 15 | 35 | |
| 1-1/8 – 1-1/4 | 105 | 65 | 20 | 35 | |
| 1-3/8 – 1-1/2 | 100 | 50 | 28 | 45 | |
| B8M Class 2 | Up to 3/4 | 110 | 95 | 15 | 45 |
| 7/8 – 1 | 100 | 80 | 20 | 45 | |
| 1-1/8 – 1-1/4 | 95 | 65 | 25 | 45 | |
| 1-3/8 – 1-1/2 | 90 | 50 | 30 | 45 |
| Element | B7 | B8 | B8M |
| Carbon | 0.37 – 0.49% | 0.08% max | 0.08% max |
| Manganese | 0.65 – 1.10% | 2.00% max | 2.00% max |
| Phosphorus, max | 0.035% | 0.045% | 0.045% |
| Sulfur, max | 0.040% | 0.030% | 0.030% |
| Silicon | 0.15 – 0.35% | 1.00% max | 1.00% max |
| Chromium | 0.75 – 1.20% | 18.0 – 20.0% | 16.0 – 18.0% |
| Nickel | 8.0 – 11.0% | 10.0 – 14.0% | |
| Molybdenum | 0.15 – 0.25% | 2.00 – 3.00% |
At Sumakhsteel, we take great pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically situated across the USA, we maintain an extensive stock of more than 25,000 tons of top-quality materials kept readily available in inventory.
Reach out to us for a fast quote tailored to your needs.
We offer These ASTM A193 B8T Stud Bolts in accordance with DIN, ISO, JIS or ANSI Standard.

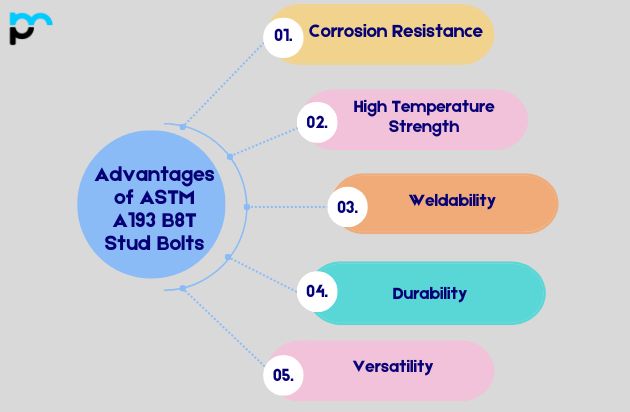

Corrosion Resistance: ASTM A193 B8T stud bolts are manufactured from grade 347 stainless steel, an alloy containing titanium and niobium. These elements improve its ability to withstand intergranular corrosion, making it well suited for settings where contact with corrosive materials is a concern.
High Temperature Strength: Grade 347 stainless steel, the material used for ASTM A193 B8T stud bolts, maintains good strength at high temperatures. This makes it appropriate for uses that involve elevated heat, such as industrial furnaces or exhaust systems.
Weldability: ASTM A193 B8T material can be easily welded with standard welding methods, offering flexibility in construction and repair work without weakening the bolt’s integrity.
Durability: The pairing of corrosion resistance and strength at high temperatures ensures that ASTM A193 B8T stud bolts deliver a long service life, even under demanding conditions.
Versatility: These stud bolts are adaptable and can serve across a broad spectrum of industries and applications, including chemical processing, oil and gas production, power generation, and beyond.
ASTM A193 B8T Stud Bolts serve uses as varied as the industries that depend on them, led chiefly by the aerospace, railway, construction and automotive sectors, along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
