Home > Other Material > ASTM A193 B8MLCuN Bolts
Material | Specification | Standards | Size | Length |
ASTM A193 Hex Bolts Fasteners | IS BS ASTM | DIN, ISO, JIS, GB, IS, BS, ASTM | M 02 to M 160 | 3 mm to 200 mm |
| Tensile Strength/Ultimate Tensile Stress (UTS) – (Mpa) | 550 |
| Yield Strength/Proof Stress(0.2% Offset) (YS) – (Mpa) | 240 |
| Elongation in 4D (El) | 30 |
| Reduction | 40 |
| Hardness – (BHN) | 223 |
| Element | B8MLCuN |
| Carbon | 0.020 max |
| Manganese | 1.00 Max |
| Phosphorus, max | 0.030 Max |
| Sulfur, max | 0.010 Max |
| Silicon | 0.80 Max |
| Chromium | 19.5-20.5 |
| Nickel | 17.5-18.5 |
| Molybdenum | 6.0-6.5 |
At Sumakhsteel, we take pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. Backed by cutting-edge production plants strategically situated in the USA, we maintain an extensive inventory of more than 25,000 tons of top-quality materials kept ready in stock.
Reach out to us for a fast quote tailored to your requirement.
We supply these ASTM A193 B8MLCuN Bolts in accordance with DIN, ISO, JIS or ANSI Standard.

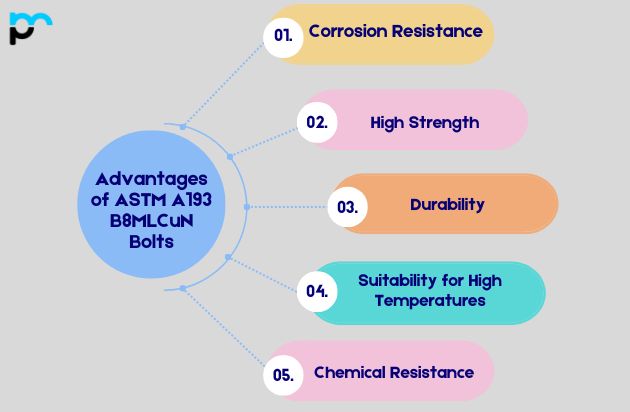

Corrosion Resistance: B8MLCuN bolts are manufactured from stainless steel with additional elements such as Molybdenum (Mo), Copper (Cu), and Nitrogen (N). This makeup improves their ability to resist corrosion, especially in settings where chloride exposure is frequent, like marine and coastal regions.
High Strength: These bolts are engineered to deliver high tensile strength, which makes them appropriate for uses where robust fastening is needed.
Durability: Because of their corrosion-resistant qualities, B8MLCuN bolts last longer than ordinary carbon steel bolts, particularly under severe conditions.
Suitability for High Temperatures: They are able to endure high temperatures without sacrificing their mechanical properties, which makes them fitting for uses where heat resistance is critical.
Chemical Resistance: The makeup of B8MLCuN bolts also grants resistance to a range of chemicals, which broadens their usefulness in sectors like chemical processing, oil and gas, and petrochemicals.
ASTM A193 B8MLCuN Bolts have uses as varied as the sectors they support, led mainly by the aerospace, railway, construction and automotive sectors along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
