Home > Super Duplex Steel > Super Duplex Steel Coil S32760
Super Duplex Steel Coil S32760 is a top-tier material celebrated for its remarkable durability and resistance to corrosion. Made up of a carefully balanced mixture of austenitic and ferritic stainless steels, it provides outstanding strength and powerful defense against pitting, crevice corrosion, and stress corrosion cracking. Purpose-built for challenging conditions, including chemical processing, oil and gas, and marine industries, this variant delivers unmatched protection from harsh chemicals and high temperatures. Impressively, Super Duplex Steel Coil S32760 features exceptional weldability and formability, enabling smooth integration into diverse fabrication processes with ease and accuracy.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32760 | 7.8 | 0.281 | 1350 | 2460 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32760 | 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 – 26.00 | 3.00 – 5.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
At Sumakhsteel, we’re proud to be the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically situated across the USA, we maintain an extensive stock of more than 25,000 tons of top-grade materials kept ready in inventory.
Reach out to us for a fast quote tailored to your requirement.
We provide these Super Duplex Steel Coil S32760 conforming to DIN, ISO, JIS or ANSI Standard.

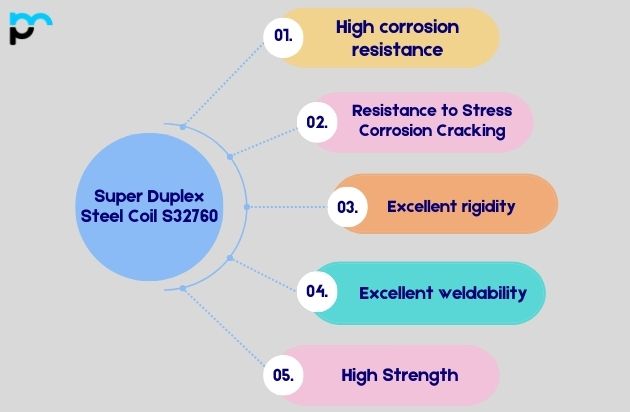

High corrosion resistance: Super duplex steel S32760 delivers outstanding corrosion resistance across a range of harsh environments, including those containing chlorides such as seawater, which makes it well suited for offshore and marine applications
Resistance to Stress Corrosion Cracking (SCC): Super Duplex Steel S32760 shows outstanding resistance to stress corrosion cracking, a frequent concern in high chloride settings, making it well suited for applications where SCC could be an issue-grade
Excellent rigidity: Retains its mechanical properties at both ambient and elevated temperatures, guaranteeing structural integrity and reliability even in demanding operating conditions
Excellent weldability: Although it has a high alloy content, super duplex steel S32760 shows excellent weldability when proper welding procedures are followed, allowing it to be shaped into structures with complex geometries.
High Strength: Relative to standard austenitic dual stainless steel, it offers greater tensile and yield strength to handle high loads and stresses, which is valuable in structural applications
Super Duplex Steel Coil S32760 uses are as varied as the sectors they cater to, led mainly by the aerospace, railway, construction and automotive sectors along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Oil and Gas Industry: Super Duplex Steel S32760 is extensively utilized across the oil and gas sector for numerous applications including pipelines, offshore platforms, subsea equipment, valves and pump fittings, along with other specialty and corrosion resistance needs in chloride environments. These ions require Makes to be suitable for use.
Pulp and Paper Industry: S32760 is employed in the pulp and paper sector for equipment like digesters, bleachers, washers and piping systems that demand resistance to chemical and high-temperature corrosion
Industrial desalination plants: Desalination equipment relies on Super Duplex Steel S32760 in pumps, valves, pipes and additional components owing to its corrosion resistance in high chloride settings, which are typical in the ocean for water desalination
Marine Applications: Owing to its resistance to corrosion in seawater and marine settings, Super Duplex Steel S32760 serves various marine applications, such as shipbuilding, offshore platforms, propeller shafts, fittings and other accessories.
Chemical applications: The distinctive corrosion resistance of S32760 makes it well-suited for corrosion control chemicals. It is frequently used in reactors, heat exchangers and tanks for chemicals like sulfuric acid, hydrochloric acid and seawater.
Water resistance: Super Duplex steel is recognized for its outstanding resistance to corrosion, particularly in aggressive environments like marine or chemical applications. Make sure the S32760 grade offers corrosion resistance against acids, alkalis and chloride.
Heat Resistance: Take into account the operating temperature of your application and confirm that the super duplex steel coil can endure the necessary temperatures without sacrificing its mechanical or corrosion resistance properties.
Chemical composition: Review the chemical composition of S32760 Super Duplex Steel to verify it satisfies your application needs. It includes elements like chromium, molybdenum, nitrogen and nickel, which add to the material’s corrosion resistance and mechanical strength.
Mechanical properties: Assess the coil’s performance, including tensile strength, voltage, and length. These characteristics establish a material’s capacity to endure stress and deformation when placed under load.
