Home > Stainless Steel > Stainless Steel 304 Forgings
Our company stands out in offering a varied range of Stainless Steel 304 Forgings obtained from premier suppliers celebrated for their stainless steel proficiency. These forgings are meticulously tailor-made to meet a broad spectrum of industry needs, providing adaptability in size, grades, and standards. Commonly employed across sectors such as automotive, aerospace, and food processing, they are valued for their exceptional corrosion resistance and durability. Built with a robust microstructure, these 304 stainless steel forgings provide enhanced strength and toughness, guaranteeing dependable mechanical performance throughout diverse applications.
| Specifications | ASTM A182, ASME SA182 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – |
| (UNS) | Tensile Strength (MPa) ≥ | Yield Strength ≥ (MPa) at 0.2% Offset | Elongation in 50 mm (%, ≥) | Reduction of Area, %, ≥ | Brinell Hardness (HBW) ≤ | Rockwell Hardness (HRBW) ≤ | Product | Condition |
| 304 (UNS S30400) | 515 | 205 | 40 | – | 201 | 92 | Plate, Sheet, and Strip | – |
| 515 | 205 | 40 | 50 | – | – | Bars and Shapes | Hot finished | |
| 620 | 310 | 30 | 40 | – | – | Cold finished, Dia ≤ 12.7mm | ||
| 515 | 205 | 30 | 40 | – | – | Cold finished, Dia. > 12.7mm |
At Sumakhsteel, we take great pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically positioned across the USA, we maintain an extensive stock of more than 25,000 tons of top-grade materials kept ready and available.
Reach out to us for a fast quote tailored to your requirement.
We supply these Stainless Steel 304 Forgings conforming to DIN, ISO, JIS or ANSI Standard.

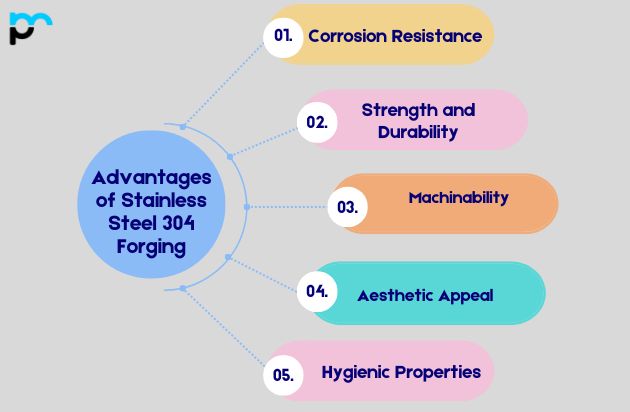

Corrosion Resistance: Stainless Steel 304 offers excellent corrosion resistance across many different environments, whether acidic, alkaline, or high in chlorides. As a result, it works well for uses where contact with moisture or corrosive materials may be an issue.
Strength and Durability: It provides solid strength properties, particularly when annealed. That strength holds up even at elevated temperatures, which makes it well suited to forging processes that involve heat and pressure.
Machinability: Compared with other stainless steel grades, Stainless Steel 304 is fairly easy to machine. This quality is beneficial in forging work that calls for accurate shapes and dimensions.
Aesthetic Appeal: It features a bright, clean look that suits uses where visual appeal matters, such as architectural components or consumer products.
Hygienic Properties: Stainless Steel 304 is non-porous and simple to clean, which makes it appropriate for uses in fields like food processing, pharmaceuticals, and medical equipment.
Stainless Steel 304 Forgings serve uses as varied as the sectors they support, led chiefly by the aerospace, railway, construction and automotive fields, along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, and more.
Industrial Equipment: Forgings made from Stainless Steel 304 are commonly employed in producing industrial equipment including valves, fittings, pumps, and heat exchangers. Because it resists corrosion and lasts long, it works well for dealing with a range of chemicals and fluids.
Food Processing: Within the food and beverage sector, Stainless Steel 304 forgings are the material of choice for processing equipment such as tanks, vats, and piping systems. Its corrosion resistance, easy cleaning, and adherence to hygiene standards make it perfect for keeping food safe.
Automotive Industry: Parts in the automotive field, including exhaust systems, manifolds, and additional engine components, frequently rely on Stainless Steel 304 forgings thanks to their heat tolerance, strength, and ability to withstand corrosion caused by road salts and environmental conditions.
Application Requirements: Get to know the setting where the forgings will operate. Take into account elements like temperature, contact with corrosive chemicals or salts, mechanical loads, and cleanliness requirements (where relevant).
Corrosion Resistance: Stainless Steel 304 provides solid all-around corrosion resistance, though how well it holds up may differ based on the particular setting. Confirm that the forgings are appropriate for the planned exposure conditions (e.g., atmospheric, marine, chemical).
Mechanical Properties: Identify the strength and toughness needs of the forgings according to the application. In its annealed state, Stainless Steel 304 has moderate strength along with good ductility, making it fit for numerous uses. That said, when greater strength is required, look into other grades or heat treatments.
Stainless Steel 304 forgings can be prone to galvanic corrosion when they come into contact with dissimilar metals in a conductive setting. Adequate insulation or the use of compatible materials, along with careful design considerations, can reduce this risk in real-world applications.
When choosing Stainless Steel 304 forgings, weigh factors like resistance to corrosion in the target environment, mechanical characteristics matched to operational loads, suitability for welding and machining operations, conformance to industry standards, and value compared to alternative materials, making sure they satisfy particular application requirements efficiently.
Yes, Stainless Steel 304 forgings are highly recyclable. Stainless steel is a valued material in recycling thanks to its durability and resistance to corrosion. Recycling methods effectively recover and reuse stainless steel, reducing environmental impact and preserving resources.
Stainless Steel 304 forgings generally do not need corrosion protection coatings because of their built-in resistance to corrosion across many environments. That said, under extremely corrosive conditions or particular applications, coatings such as paint or powder coatings might be used for extra protection, based on the operational needs.
