Our firm stands out in delivering a broad range of Stainless Steel 253MaForgings obtained from leading suppliers celebrated for their stainless steel proficiency. Each of these forgings is meticulously tailored to meet the demands of numerous industries, providing versatility in dimensions, grades, and specifications. Commonly employed across fields such as automotive, aerospace, and food processing, they are valued for their exceptional resistance to corrosion and extended lifespan. Built with a robust microstructure, these 253Ma stainless steel forgings offer enhanced strength and toughness, guaranteeing dependable mechanical performance in a range of uses.
| Specifications | ASTM A182, ASME SA182 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |
| Grade | C | Mn | Si | S | P | Fe | Ni | Cr | Ce | N |
|---|---|---|---|---|---|---|---|---|---|---|
| 253 MA | 0.10 max | 0.80 max | 2.0 max | 2.0 max | 0.04 max | Bal | 10.0 – 12.0 | 20.0 – 22.0 | 0.03 – 0.08 | 0.14 – 0.20 |
| Element | Density | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness |
|---|---|---|---|---|---|
| 253 MA | 7.8 g/cm3 | 600 | 40 | 310 | HR B – 95, HB – 217 |
At Sumakhsteel, we’re proud to be the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically situated across the USA, we maintain an extensive stock of more than 25,000 tons of top-quality materials kept ready in inventory.
Get in touch with us to receive a fast quote for your requirement.
We supply these Stainless Steel 253Ma Forgings conforming to DIN, ISO, JIS or ANSI Standard.

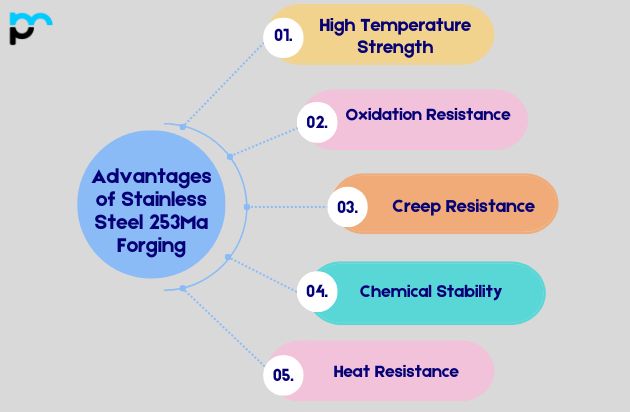

High Temperature Strength: Outstanding strength and creep resistance at high temperatures reaching 1150°C (2100°F), which makes it well-suited for high-heat applications.
Oxidation Resistance: Excellent resistance to oxidation, preserving integrity and performance in oxidative conditions.
Creep Resistance: Superior resistance to creep deformation under heavy stresses at high temperatures, guaranteeing long-term structural stability.
Chemical Stability: Resistant to carburization, sulfidation, and other types of degradation in harsh industrial settings.
Ease of Fabrication: Good weldability and formability, easing manufacturing processes and customization.
Stainless Steel 253Ma Forgings serve uses as varied as the sectors they support, led chiefly by the aerospace, railway, construction and automotive sectors, along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Heat Treatment Equipment: Furnace parts, trays, and fittings in situations where withstanding elevated temperatures and thermal cycling is essential.
Industrial Furnaces: Radiant tubes, muffles, and retorts employed in heat treatment operations.
Power Generation: Boiler parts, superheaters, and reheater tubes in power stations that demand resistance to high-temperature oxidation and thermal stress.
Chemical and Petrochemical: Tubes, reactors, and process piping subjected to corrosive environments and elevated temperatures.
Mechanical Properties: Assess the necessary mechanical characteristics, such as strength, toughness, and resistance to creep deformation when subjected to high stresses at elevated temperatures.
Fabrication Needs: Take into account the ease of manufacturing, including weldability and formability, which matter for shaping and joining components.
Industry Standards: Verify whether the forgings must comply with particular industry standards or certifications (e.g., ASTM, ASME) to ensure compliance and reliability.
Cost Considerations: Assess the overall cost-effectiveness, encompassing initial procurement expenses along with long-term maintenance and performance advantages.
Stainless Steel 253MA forgings can be vulnerable to galvanic corrosion when placed in contact with dissimilar metals under certain conditions. Adequate insulation or the choice of compatible materials is essential to reduce this hazard in applications susceptible to galvanic corrosion, guaranteeing lasting durability and performance.
When choosing Stainless Steel 253MA forgings, take into account high-temperature strength (up to 1150°C), resistance to oxidation and carburization corrosion, mechanical characteristics such as creep resistance, fabrication requirements including weldability, compliance with industry standards (ASTM, ASME), and supplier know-how for quality assurance in tough thermal and corrosive applications.
Yes, Stainless Steel 253MA forgings can be recycled. Owing to its valuable characteristics and economic advantages, stainless steel is extremely recyclable. Recycling supports the conservation of resources, savings in energy, and a lower environmental footprint, which makes it a sustainable option for a range of industrial uses.
Stainless Steel 253MA forgings typically need little in the way of corrosion protection coatings, owing to their built-in resistance to oxidation and high-temperature corrosion. That said, in highly corrosive settings or when extra protection is desired, coatings such as paints or polymer films can be used to improve durability and performance in particular applications.
