| Specifications | ASTM A240 / ASME SA240 |
| Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| Thickness | 0.02mm-6.0mm |
| Width | 1.0mm-1500mm |
| Edge | Slit/Mill |
| Quantity Tolerance | ±10% |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard as customer’s requirements |
| Finish | NO.1/2B/2D/BA/HL/Brushed/6K/8K Mirror,etc |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
Properties | Metric | Imperial |
|---|---|---|
Tensile strength | 515 MPa | 74694 psi |
Yield strength | 275 MPa | 39900 psi |
Elastic modulus | 207 GPa | 30000 ksi |
Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
Elongation at break | 40% | 40% |
| Element | Content (%) |
|---|---|
| Iron, Fe | 68 |
| Chromium, Cr | 17- 19 |
| Manganese, Mn | 7.50-10 |
| Nickel, Ni | 4-6 |
| Silicon, Si | ≤ 1 |
| Nitrogen, N | ≤ 0.25 |
| Carbon, C | ≤ 0.15 |
| Phosphorous, P | ≤ 0.060 |
| Sulfur, S | ≤ 0.030 |
At Sumakhsteel, we take great pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically situated across the USA, we maintain an extensive stock of more than 25,000 tons of top-quality materials kept ready in inventory.
Reach out to us for a fast quote tailored to your needs.
These Stainless Steel 202 Coils are supplied by us in accordance with DIN, ISO, JIS or ANSI Standard.

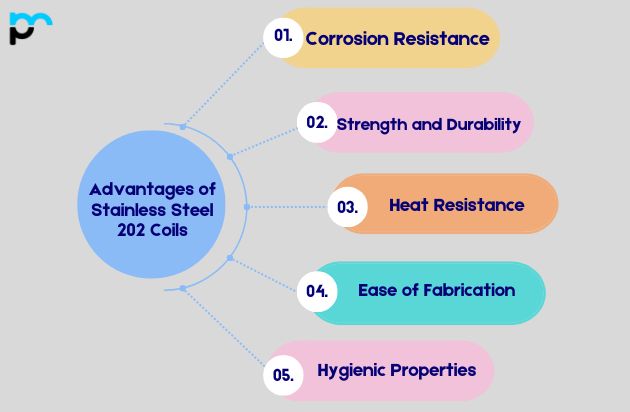

Corrosion Resistance: Stainless steel 202 offers excellent corrosion resistance, which makes it perfectly suited for use across a range of settings, including those involving high humidity or contact with chemicals.
Strength and Durability: These coils are recognized for their toughness and long-lasting nature, delivering outstanding results in tough applications. They are capable of enduring significant stress and pressure without bending or fracturing.
Heat Resistance: Stainless steel 202 exhibits solid heat resistance qualities, which makes it appropriate for uses that involve elevated temperatures, such as within the automotive, aerospace, and industrial sectors.
Ease of Fabrication: Stainless steel 202 coils can be shaped into various forms and dimensions with relative ease, offering versatility in both design and construction.
Hygienic Properties: Stainless steel is non-porous and simple to clean, which makes it a favored option for uses where cleanliness is essential, such as in food processing, pharmaceuticals, and healthcare.
Stainless Steel 202 Coils applications are as varied as the industries they cater to, propelled chiefly by the aerospace, railway, construction and automotive industries alongside petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Kitchen Appliances: Stainless steel 202 coils are commonly employed in producing kitchen equipment like cookware, utensils, and sinks, thanks to their resistance to corrosion and long-lasting nature.
Architecture and Construction: Owing to their visual appeal, strength, and ability to withstand environmental conditions, these coils find use in architectural projects including building facades, roofing, and interior design.
Automotive Industry: Within the automotive sector, Stainless steel 202 coils serve in numerous parts like exhaust systems, trim, and ornamental elements because they resist both corrosion and heat.
Industrial Equipment: Owing to their ability to withstand corrosion and elevated temperatures, they are used in producing industrial equipment such as storage tanks, chemical processing equipment, and machinery components.
Application Requirements: Identify what your application specifically needs, taking into account aspects like resistance to corrosion, strength, tolerance to temperature, and visual appeal. Stainless steel 202 coils provide solid corrosion resistance and formability, though they might not be ideal for extremely corrosive settings.
Grade Compatibility: Verify that stainless steel 202 aligns with the grade specifications your application demands. Although 202 stainless steel serves as a versatile, general-purpose grade fit for numerous uses, some industries might call for higher grades offering improved properties.
Thickness and Size: Think about the coil thickness and dimensions needed according to your application’s structural and dimensional demands. Confirm that the coils come in the suitable thickness and size to satisfy your requirements.
