| Standard | ASTM B425, ASME SB425 |
| Round Bar Size | 3mm~ 800mm |
| Square Bar Size | 4mm* 4mm ~100mm* 100mm |
| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
| Grade | C | Mn | Si | Al | S | Cr | Cu | Ni | Fe | Ti |
| Incoloy 825 | 0.05 max | 1.00 max | 0.05 max | 0.02 max | 0.03 max | 19.50-23.50 | 1.50-3.00 | 38.0-46.0 | 22.0 min | 0.06 – 1.20 |
At Sumakhsteel, we take great pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for all your piping requirements. With cutting-edge manufacturing facilities strategically positioned across the USA, we maintain an extensive stock of more than 25,000 tons of top-quality materials ready and available for immediate delivery.
Reach out to us for a fast quote tailored to your needs.
We supply these Incoloy 825 Bars in accordance with DIN, ISO, JIS or ANSI Standard.

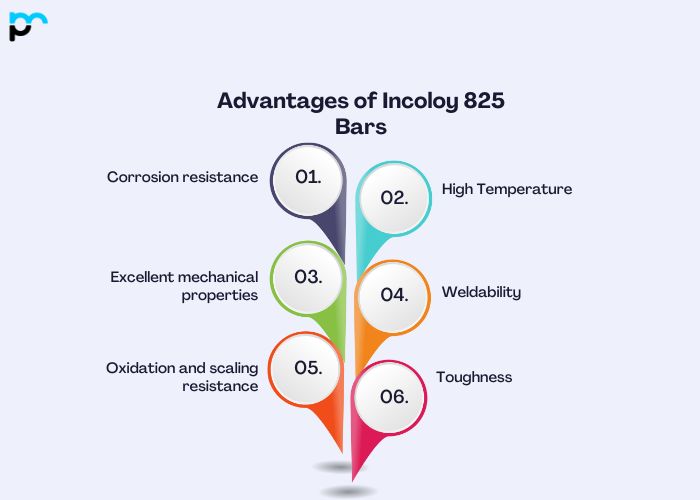

Corrosion resistance: A key benefit of Incoloy 825 boards is their outstanding resistance to corrosion across many different environments, spanning both acidic and alkaline conditions. This quality makes them well-suited for medicinal, marine, and pollution control equipment.
High Temperature: Incoloy 825 bars maintain their strength and structural integrity even under high temperatures, which makes them appropriate for high-temperature uses such as heat exchangers, furnace components and petrochemical applications
Excellent mechanical properties: These tapes provide superb mechanical characteristics, such as high tensile strength, and guarantee dependability and durability within demanding industrial settings
Weldability: Incoloy 825 bars are readily welded using conventional welding methods, giving them versatility and ease of fabrication across a wide range of applications
Oxidation and scaling resistance: Incoloy 825 bar shows outstanding resistance to oxidation and scaling at high temperatures, ensuring a long service life under oxygenated and high-temperature conditions
Incoloy 825 Bars serve applications as varied as the industries that rely on them, led chiefly by the aerospace, railway, construction and automotive sectors along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Corrosion Resistance: One of the primary uses for Incoloy 825 bars is in corrosive environments. The alloy offers outstanding resistance to acid reduction and oxidation, stress-corrosion cracking, pitting, and crevice corrosion. This makes it appropriate for use in the chemical industry, pollution control, oil and gas industry, and marine applications.
High-Temperature Applications: Incoloy 825 keeps its strength and resistance at high temperatures, making it appropriate for use in heat exchangers, furnace applications, and other applications where it is in high temperature
Chemical applications: Owing to its resistance to corrosion in a range of atmospheric conditions, Incoloy 825 wood is used in chemical applications such as reactors, vessels, piping systems and valves
Oil and Gas Industry: The Incoloy Gas industry finds uses for corrosive liquids such as acid gas, crude oil, and seawater. This covers downhole tubing, wellhead equipment, and pipelines.
Desalination Plants: Because of its resistance to chloride-induced stress corrosion and cracking, Incoloy-825 pipes are used in desalination plant sections where seawater is treated to liquefy hip
Application Requirements: Grasp the particular needs of your application, taking into account elements like temperature, pressure, environmental corrosion, mechanical loads, resilience designs and more
Materials: Verify that the Incoloy 825 bars comply with the relevant material specifications and standards, such as ASTM B425 for bars and ASTM B564 for forgings.
Size and shape: Establish the necessary size and shape of the strips according to your application’s design and thickness needs. Take into account elements like thickness, length, and any special shapes needed.
Surface Finish: Think about the preferred surface finish of the bars, which may range from as-rolled to precision ground or polished depending on the surface quality and dimensional accuracy demanded by the application
Corrosion resistance: Incoloy 825 offers outstanding corrosion resistance, though the intensity of environmental corrosion can differ. Make sure the rod is highly resistant to the particular corrosive agents in your product, such as acids, alkalis, salt water, or other chemicals.
