ASTM A 453 GR 660 Class D Nuts

Home > Other Material > ASTM A 453 GR 660 Class D Nuts

ASTM A 453 GR 660 Class D Nuts Manufacturer Supplier & Exporter in California, USA

ASTM A 453 Gr 660 Class D Nuts in Texas, SS ASTM A 453 Serrated Flange Nuts, Gr 660 Class D Flange Lock Nut in California, USA.

ASTM A453 Grade 660 Class D nuts are top-tier fasteners recognized for outstanding strength and resistance to corrosion, well-suited for severe environments. These nuts are crafted from premium alloy steel to endure high heat and heavy load edges, which makes them perfect for critical applications in the petrochemical, power generation and offshore drilling industries. By complying with rigorous ASTM standards, dependable performance is guaranteed and endures for a long time. Their enhanced construction and outstanding mechanical properties make ASTM A453 Grade 660 Class D nuts an excellent pick for strengthening bolts and joints under demanding industrial conditions.

ASTM A 453 GR 660 Class D Nuts Specifications

Material	Dimensions	Standards	Size	Length
ASTM A453 GR 660 CLASS D Heavy Hex Nut	ASME B18.2.1, B18.3	ASTM, ASME	M 02 to M 160	3 mm to 200 mm

Mechanical Properties of ASTM A 453 GR 660 Class D Nuts

Tensile Strength/Ultimate Tensile Stress (UTS) – (Mpa)	895 min
Yield Strength/Proof Stress(0.2% Offset) (YS) – (Mpa)	585 min
Elongation in 4D (El)	15
Reduction	18

ASTM A 453 GR 660 Class D Nuts Chemical Composition

Element	Content
Carbon	0.08 max
Manganese	2.00 max
Phosphorus, max	0.040 max
Sulfur, max	0.030 max
Silicon	1.00 max
Nickel	24.0-27.0
Chromium	13.5-16.0
Molybdenum	1.00-1.50
Tungsten	–
Titanium	1.9-2.35
Aluminum	0.35 max
Vanadium	0.10-0.50
Boron	0.001-0.010

ASTM A453 Gr 660 Nylon Lock Nuts, ASTM A453 Gr 660 Class D Custom Nuts Manufacturer and Stockist in Texas, USA.

Top ASTM A 453 GR 660 Class D Nuts Manufacturing Company in California

At Sumakhsteel, we take pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically situated in the USA, we hold an extensive stockpile of more than 25,000 tons of top-grade materials on hand and ready to ship.

Reach out to us for a fast quote tailored to your requirement.

These ASTM A 453 GR 660 Class D Bolts are supplied by us in accordance with DIN, ISO, JIS or ANSI Standard.

ASTM A453 Gr 660 Heavy Hex Nuts in USA, Gr 660 Class D Hex Nuts, Gr 660 Lock Nuts Supplier and Exporter in California, USA

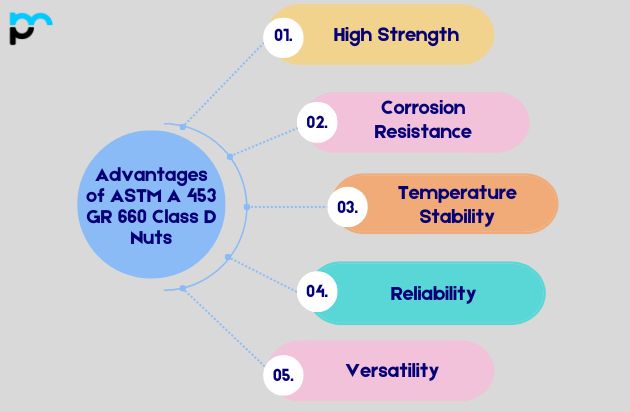

Advantages of ASTM A 453 GR 660 Class D Nuts

High Strength: ASTM A453 Grade 660 Class D nuts deliver outstanding tensile strength, which makes them perfectly suited for fastening high-stress joints in tough, demanding applications.
Corrosion Resistance: These nuts offer superb protection against corrosion and oxidation, guaranteeing longevity and dependability in severe conditions.
Temperature Stability: They retain their mechanical characteristics even at high temperatures, making them appropriate for heat-intensive sectors like power generation and petrochemicals.
Reliability: Produced according to rigorous ASTM standards, these nuts provide reliable performance and lower the likelihood of joint failures, boosting both safety and efficiency.
Versatility: Well-suited for a range of industries such as offshore drilling, chemical processing, and aerospace, they supply adaptable fastening options for critical applications.

Types of ASTM A 453 GR 660 Class D Nuts

SS ASTM A453 Self Locking Nuts, ASTM A453 Grade 660 Class D Specification in Texas, USA.

Application Industry

ASTM A 453 GR 660 Class D Nuts serve applications as varied as the industries that rely on them, led mainly by the aerospace, railway, construction and automotive sectors along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.

Automotive Industry

Construction Sector

Aerospace Applications

Oil and Gas Industry

Are ASTM A 453 GR 660 Class D Nuts Susceptible to galvanic corrosion?

ASTM A453 Grade 660 Class D nuts are typically resistant to galvanic corrosion because of their alloy makeup, which contains corrosion-resistant elements such as nickel and chromium. These elements create protective oxide layers, lowering the likelihood of galvanic reactions when paired with dissimilar metals. Nevertheless, appropriate material selection and surface treatments should be taken into account in environments susceptible to galvanic corrosion, like marine settings, to further improve their resistance.
