Standards : ASTM B209 / ASME SB209
Temper : O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38,H111,H112,H114,H 116,H321
Thickness : 0.2-250
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hairline, brushed, sand blasted, embossed, etched, and so on.
Finish : Mill, finish as per customer requirement
Aluminum Sheet/ Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
| Mg | Mn | Si | Cu | Fe | Cr | Zn | Ti | Cu | Other (Each) | Others (Total) | Al |
| 2.60 – 3.60 | 0.0 – 0.50 | 0.0 – 0.40 | 0.0 – 0.40 | 0.0 – 0.30 | 0.0 – 0.20 | 0.0 – 0.15 | 0.0 – 0.10 | 0.0 – 0.05 | 0.0 – 0.05 | 0.0 – 0.15 | Balance |
| Proof Stress | Tensile Strength | Elongation at 50 mm | Hardness Brinell |
| 80 Min MPa | 190 – 260MPa | 12 Min % | 52 HB |
At Sumakhsteel, we take great pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for all your piping requirements. With cutting-edge manufacturing facilities strategically situated in the USA, we maintain an extensive inventory of more than 25,000 tons of top-quality materials kept ready in stock.
Reach out to us for a fast quote tailored to your requirement.
We supply These Aluminium 5754 Sheets and Plates in accordance with DIN, ISO, JIS or ANSI Standard.

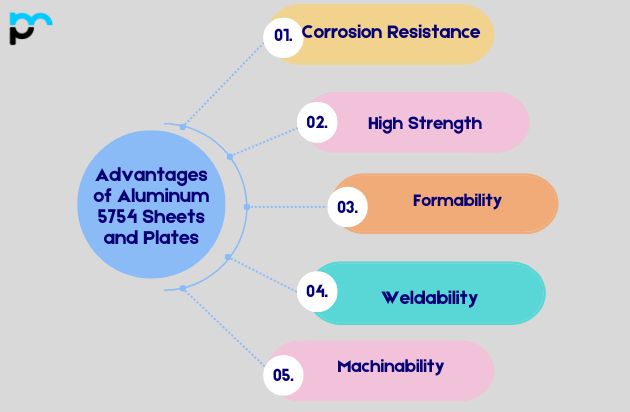

Corrosion Resistance: Aluminum 5754 delivers exceptional corrosion resistance, especially in marine settings. This quality makes it well-suited for uses where contact with saltwater or acidic conditions poses a risk.
High Strength: It possesses solid strength characteristics, making it appropriate for structural uses where strength plays a key role. This alloy is well-suited to environments that demand moderate strength alongside good formability.
Formability: Aluminum 5754 is exceptionally formable, enabling it to be readily worked into a range of forms such as sheets, plates, or intricate shapes. This characteristic makes it adaptable across various manufacturing methods.
Weldability: It offers superb weldability, using both traditional welding approaches and modern techniques like laser welding. This eases assembly and lowers production costs.
Machinability: The alloy demonstrates favorable machinability traits, permitting efficient machining tasks like drilling, milling, and turning.
Aluminium 5754 Sheets and Plates play a crucial role in petrochemicals, food processing, healthcare, water treatment, pharmaceuticals, power generation, construction, shipbuilding, and agriculture. Thanks to their corrosion resistance and durability, they provide reliable connections in pipelines, uphold hygiene standards, and endure challenging conditions.
Marine Applications: Thanks to its excellent resistance to corrosion, Aluminum 5754 sees widespread application in the marine industry for boat hulls, decks, superstructures, and other marine components that come into contact with seawater.
Automotive Industry: It finds use in the automotive sector to produce panels, chassis components, fuel tanks, and other structural parts in situations where light weight, corrosion resistance, and formability are critical.
Transportation: Aluminum 5754 serves the transportation sector in the construction of truck trailers, freight containers, and railway carriages where great strength, durability, and reduced weight offer benefits.
Application Requirements: Establish precisely what the aluminum sheets and plates will be used for. Weigh considerations like whether corrosion resistance, strength, formability, weldability, or surface finish matter most for your particular use.
Alloy Specifications: Confirm that Aluminum 5754 satisfies the specifications and standards demanded by your application. This means reviewing mechanical properties (like tensile strength, yield strength, and elongation), chemical makeup, and any requirements specific to your industry (e.g., marine grade standards).
Thickness and Size: Work out the suitable thickness and dimensions of sheets or plates required for your project. Take into account things like structural needs, weight limitations, and manufacturing capabilities (e.g., bending, machining).
