Home > Plain Washers

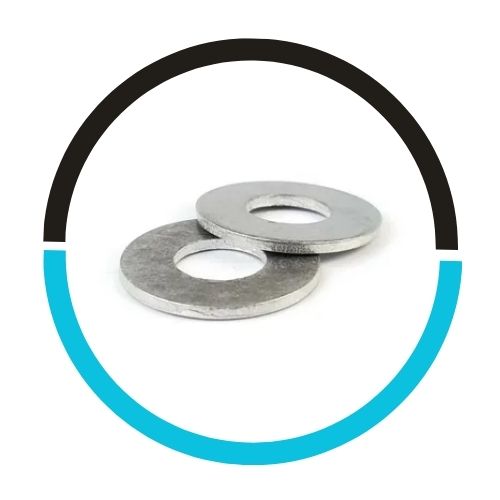

Explore our selection of Plain Washers, crafted for a variety of industrial applications. Our washers are engineered to comply with demanding industry standards while delivering durability and resistance to corrosion. Take advantage of our extensive range, affordable pricing, and fast delivery for your peace of mind. Whether used in construction, infrastructure, or industrial work, our Plain Washers satisfy exacting requirements, guaranteeing dependability and forward-thinking design. Count on our commitment to quality and know-how for exceptional results.
| SIZE | D1 | D2 | H | C | E | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Hole Diameter | External Diameter | Thickness | Hole Thickness | Chamfer Depth | ||||||
| Min. = Nominal Size | Max. | Max. = Nominal Size | Min. | Max. | Min. | Max. | Min. | Max. | Min. | |
| M12 | 13 | 13.27 | 24 | 23.48 | 3.3 | 2.7 | 1.9 | 1.6 | 1.0 | 0.5 |
| M14 | 15 | 15.27 | 28 | 27.48 | 3.3 | 2.7 | 1.9 | 1.6 | 1.0 | 0.5 |
| M16 | 17 | 17.27 | 30 | 29.48 | 4.3 | 3.7 | 1.9 | 1.6 | 1.5 | 0.75 |
| M20 | 21 | 21.33 | 37 | 36.38 | 4.3 | 3.7 | 2.5 | 2.0 | 1.5 | 0.75 |
| M22 | 23 | 23.33 | 39 | 38.38 | 4.3 | 3.7 | 2.5 | 2.0 | 1.5 | 0.75 |
| M24 | 25 | 25.33 | 44 | 43.38 | 4.3 | 3.7 | 2.5 | 2.0 | 1.5 | 0.75 |
| M27 | 28 | 28.52 | 50 | 49.00 | 5.6 | 4.4 | 3.0 | 2.5 | 2.0 | 1.0 |
| M30 | 31 | 31.62 | 56 | 54.8 | 5.6 | 4.4 | 3.0 | 2.5 | 2.0 | 1.0 |
| M36 | 37 | 37.62 | 66 | 64.8 | 6.6 | 5.4 | 3.0 | 2.5 | 2.5 | 1.25 |
At Sumakhsteel, we take great pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically situated across the USA, we maintain an extensive inventory of more than 25,000 tons of top-quality materials kept ready in stock.
Reach out to us for a fast quote tailored to your requirement.
We provide these Plain Washers in accordance with DIN, ISO, JIS or ANSI Standard.
Plain Washers serve a wide range of uses, spanning as many applications as the industries that rely on them mainly the aerospace, railway, construction and automotive industries along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
To choose the correct plain washers for your application, take into account the material and size specifications. Opt for materials such as stainless steel for corrosion resistance or nylon for electrical insulation. Match the washer dimensions to your bolt or screw diameter to guarantee a proper fit. Furthermore, evaluate the load and environmental conditions to decide whether extra features like spring washers or special coatings are needed for optimal performance.
