Home > Nickel Alloy > Nickel Alloy 200 Forging
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 200 Forgings | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 200 Forgings | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
| Specifications | ASTM B564, ASME SB564 |
|---|---|
| Standard | BS 3072, BS 3073, BS 3074, BS 3075, BS 3076, NA11 DIN 17740, 17750, 17751, 17752, 17753, 17754, DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |
At Sumakhsteel, we take great pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With cutting-edge manufacturing facilities strategically situated across the USA, we maintain an extensive stock of more than 25,000 tons of top-grade materials kept ready in inventory.
Reach out to us for a fast quote on your requirement.
We supply these Nickel Alloy 200 Forging in accordance with DIN, ISO, JIS or ANSI Standard.2

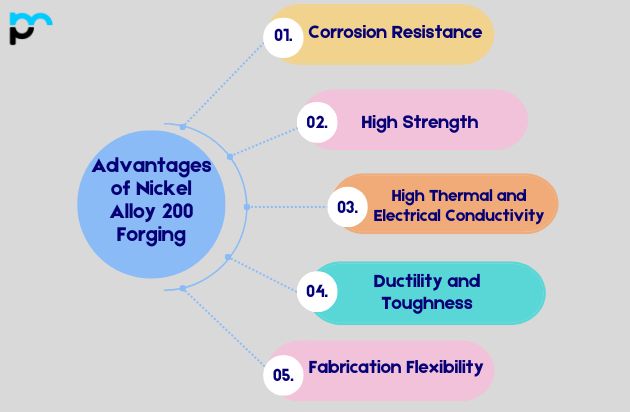

Corrosion Resistance: Nickel Alloy 200 offers exceptional corrosion resistance in alkaline environments, including caustic solutions, organic acids, and both neutral and alkaline salts. This makes it well-suited for applications where resistance to corrosion is essential.
High Thermal and Electrical Conductivity: It demonstrates superb thermal and electrical conductivity, which makes it valuable across a range of electrical and electronic uses, such as electrical components and heat exchangers.
High Strength: Nickel Alloy 200 preserves strong mechanical properties at both elevated and low temperatures. Forged parts keep their strength and soundness under demanding conditions.
Ductility and Toughness: The alloy is ductile and tough, which eases the forging process and enables the creation of intricate shapes and parts without sacrificing performance.
Fabrication Flexibility: Nickel Alloy 200 can be readily forged into a variety of shapes and sizes, giving it versatility for diverse industrial uses. It can also be welded and machined with relative ease.
Nickel Alloy 200 Forging uses are as wide-ranging as the sectors they support, led mainly by the aerospace, railway, construction and automotive sectors, along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Chemical Processing: Parts like reaction vessels, heat exchangers, and piping systems take advantage of Nickel Alloy 200’s ability to withstand corrosion from a range of acids, alkalies, and salts. Because it holds up against caustic alkalis such as sodium hydroxide (caustic soda), it is especially well suited for chemical processing equipment.
Electronics and Electrical Engineering: Nickel Alloy 200 is prized for its strong electrical conductivity and minimal electrical resistivity. It serves in electrical components like connectors, leads, and terminals, where dependability and conductivity matter most.
Marine Applications: Thanks to its ability to withstand seawater and marine atmospheres, Nickel Alloy 200 is applied in marine equipment, such as seawater piping systems, heat exchangers, and marine fittings.
Heat Exchangers: Its thermal conductivity together with its corrosion resistance make it well suited for heat exchanger parts across many industries, such as chemical processing, oil refining, and power generation.
Application Requirements: Grasp the service conditions, such as temperature, pressure, corrosive surroundings (acids, alkalis, seawater), and mechanical loads. Nickel Alloy 200 is recognized for its resistance to corrosion and its high electrical conductivity, so these characteristics are usually the main things to consider.
Mechanical Properties: Assess the mechanical properties required for your use case, including tensile strength, yield strength, ductility, and toughness. Forged Nickel Alloy 200 retains solid mechanical properties across a broad temperature range, though particular needs can differ based on the application.
Corrosion Resistance: Nickel Alloy 200 provides outstanding corrosion resistance in many environments, but the exact corrosive medium (e.g., sulfuric acid, hydrochloric acid, alkaline solutions) and its concentration should be aligned with the alloy’s resistance capabilities.
Fabrication and Formability: Take into account how intricate the component is and whether forging Nickel Alloy 200 into the needed shape is feasible. Nickel Alloy 200 is recognized for its good ductility and formability, which makes forging it into a variety of shapes and sizes easier.
