Home > Hastelloy Check Valve

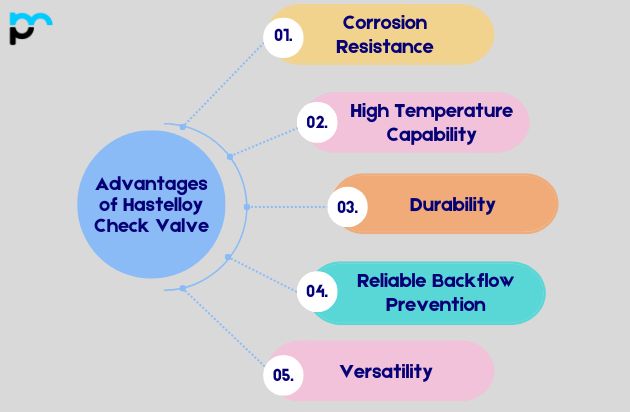

Hastelloy Check Valves are fundamental products designed to stop backfill under high-temperature mechanical conditions. Constructed from rugged Hastelloy alloy, these valves deliver outstanding resistance to corrosion, oxidation and chemical attack. They guarantee dependable one-way flow and shield equipment and processes from potential harm. Beyond their durability and reliability, Hastelloy check valves play a vital role in preserving safety and efficiency in demanding applications across a range of industries.
| INSTRUMENTATION VALVES MATERIAL | HASTELLOY |
| INSTRUMENTATION VALVES SIZE | 6 MM TO 50 MM and 1/8″ TO 2″ |
| THREADS | BSPP, NPT, METRIC, BSPT,UNF, JIC |
| CONNECTION | SOCKET WELD END, TUBE END, THREADED, FLANGE END |
| INSTRUMENTATION VALVES BODY SHAPE | HEXAGON |
| INSTRUMENTATION VALVES ORIFICE SIZE | 2 MM – 40 MM |
| PATTERN FLOW | STRAIGHT |
| EQUIVALENT BRANDS | PARKER, SWAGELOK, DK-LOK, STAUFF, OLIVER VALVES, HAMLET, HOKE |
| CRACKING PRESSURE | 0.5 BAR |
| RATING PRESSURE | 20000 PSI, 1500 PSI, 10000 PSI, 3000 PSI, 6000 PSI, 15,000 PSI |
| TYPE | SPRING TYPE, POPPET TYPE |
| BODY TYPE | FORGED, BAR STOCK |
| MEDIA | SEA WATER , HYDRAULIC AIR, OIL, GAS, WATER, HOT WATER , STEAM, COLD WATER , CHEMICAL |
| INSTRUMENTATION VALVES PACKING DETAILS | WOODEN PALLET, BOX PACKING |
| MEDIA TEMPERATURE | (-50* C – 350*C ) AS PER PRESSURE RANGE |
| Co | C | Cr | Mo | Mn | Fe | Ni | S | Si | P | |
| Hastelloy C276 | 2.5 Max | 0.010 Max | 14.50 – 16.50 | 15.00 – 17.00 | 1.00 Max | 4.00 – 7.00 | Balance | 0.03 Max | 0.08 Max | 0.04 Max |
| Hastelloy C22 | 2.5 Max | 0.010 Max | 20 – 22. | 12.5 – 14.5 | 0.50 Max | 2 – 6 | Balance | 0.02 Max | 0.08 Max | 0.02 Max |
| Melting Point | Density | Tensile Strength | Elongation | Yield Strength (0.2%Offset) | |
|---|---|---|---|---|---|
| Hastelloy C276 | Psi – 1,15,000 , MPa – 790 | 40% | 1370 °C (2500 °F) | 8.89 G/Cm33 | Psi – 52,000 , MPa – 355 |
| Hastelloy C22 | Psi – 1,00,000 , MPa – 690 | 45 % | 1399 °C (2550 °F) | 8.69 G/Cm3 | Psi – 45000 , MPa – 310 |
| Hastelloy B3 | Psi – 1,15,000 , MPa –760 | 40% | 1370 °C (2550 °F) | 9.2 G/Cm3 | Psi – 52,000 , MPa – 350 |
| Hastelloy B2 | Psi – 1,15,000 , MPa –760 | 40% | 1370 °C (2550 °F) | 9.2 G/Cm3 | Psi – 52,000 , MPa – 350 |
| Hybrid BC1 | 725 | 40% | 1343 – 1443°C | 8.83 G/Cm³ | 310 |
| Hastelloy C4 | 783 | 55% | 1350-1400 °C | 8.64 G/Cm3 | 365 |
| Hastelloy X | 655 MPa | 35% | 1355°C | 8.22 G/Cm³ | 240 MPa |
At Sumakhsteel, we take great pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for all your piping requirements. With cutting-edge manufacturing facilities strategically situated in the USA, we maintain an extensive stock of more than 25,000 tons of top-grade materials always on hand.
Reach out to us for a fast quote tailored to your requirement.
We supply these Hastelloy Check Valve conforming to DIN, ISO, JIS or ANSI Standard.
Hastelloy Check Valve uses span across a wide range of fields, led chiefly by the aerospace, railway, construction and automotive sectors, along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
When installing Hastelloy check valves, several factors help guarantee peak performance and durability. Begin by confirming compatibility with the system’s fluid type, pressure, and temperature demands, since Hastelloy alloys are selected for their outstanding corrosion resistance and high-temperature capabilities. Correct alignment and firm mounting are essential to avoid leaks and ensure dependable operation. Employ compatible sealing materials appropriate for Hastelloy alloys to preserve valve integrity. Adhere to manufacturer guidelines for installation procedures to get the most efficiency and lifespan from the valve.
