Home > Copper Nickel > Copper Ball Valves

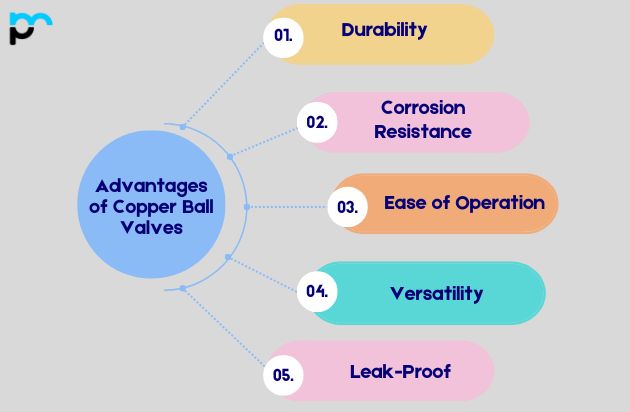

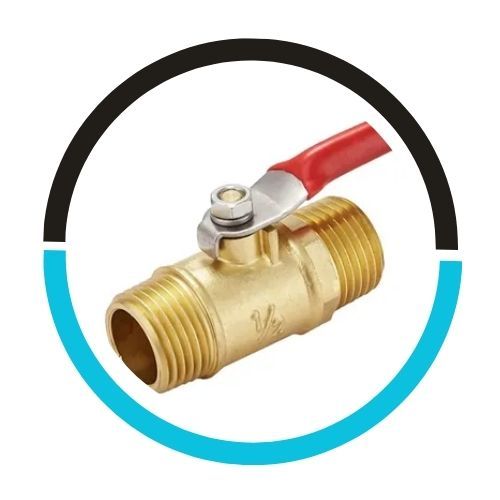

Copper Ball Valves are vital elements across a range of plumbing, HVAC, and industrial systems, recognized for their toughness, dependability, and resistance to corrosion. These valves deliver accurate flow control and are simple to operate, making them well-suited for both residential and commercial uses. Offered in a variety of sizes and configurations, copper ball valves guarantee effective and leak-free performance, which makes them a favored option among professionals and DIY enthusiasts alike.
| Material | Copper | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seal Material | PTFE/ RPTFE | ||||||||||||||||||||||||||
| Working Pressure | 1.6 – 6.4Mpa | ||||||||||||||||||||||||||
| Working Temperature | -29°C — +180°C | ||||||||||||||||||||||||||
| Availabe Size | 1/2″-4″,(DN15-DN100) | ||||||||||||||||||||||||||
| Available Connection | BSP/ BSPT/ NPT/ Flanged/ Welded | ||||||||||||||||||||||||||
| Nominal Pressure | P10/PN16 | ||||||||||||||||||||||||||
| Operation | Manual,Pneumatic, Electric | ||||||||||||||||||||||||||
| Suitable Medium | Water,Sewage,Seawater,Gas,Food,Oils,etc | ||||||||||||||||||||||||||
| Standards | GB9112,DIN2501,BS4504,ISO2084,ANSI125 | ||||||||||||||||||||||||||
| Applications | Water, Oil, Gas, | ||||||||||||||||||||||||||
| Nominal Diameter | DN40-DN300 handle lever DN350-DN1200 gear box | ||||||||||||||||||||||||||
| Operation Temperature | -10°C~150°C
|
| Material designation | COMPOSITION % | |||||||||
| Element | Cu | Ag | Bi | O | P | Pb | Other elements (see note) | |||
| Symbol | Number | Total | Excluding | |||||||
| Cu-ETP | CW004A | min. max. | 99,90(1), – | -, – | – 0,0005 | – 0,040(2) | -, – | – 0,005 | – 0,03 | Ag. O |
| Cu-FRHC | CW005A | min. max. | 99,90(1), – | -, – | -, – | – 0,040(2) | -, – | -, – | – 0,04 | Ag. O |
| Cu-OF | CW008A | min. max. | 99,95(1), – | -, – | – 0,0005 | – , -(3) | -, – | – 0,005 | – 0,03 | Ag. |
| CuAg 0,04 | CW0011A | min. max. | Balance, – | 0,03 0,05 | – 0,0005 | – 0,040 | -, – | -, – | – 0,03 | Ag. O |
| CuAg 0,07 | CW0012A | min. max. | Balance, – | 0,06 0,08 | – 0,0005 | – 0,040 | -, – | -, – | – 0,03 | Ag. O |
| CuAg 0,10 | CW0013A | min. max. | Balance, – | 0,08 0,12 | – 0,0005 | – 0,040 | -, – | -, – | – 0,03 | Ag. O |
| CuAg 0,04P | CW0014A | min. max. | Balance, – | 0,03 0,05 | – 0,0005 | – , -(3) | 0,001 0,007 | -, – | – 0,03 | Ag. P |
| CuAg 0,07P | CW0015A | min. max. | Balance, – | 0,06 0,08 | – 0,0005 | -, -(3) | 0,001 0,007 | -, – | – 0,03 | Ag. P |
| CuAg 0,10P | CW0016A | min. max. | Balance, – | 0,08 0,12 | – 0,0005 | – , -(3) | 0,001 0,007 | -, – | – 0,03 | Ag. P |
| CuAg 0,04(OF) | CW0017A | min. max. | Balance, – | 0,03 0,05 | – 0,0005 | – , -(3) | -, – | -, – | – 0,0065 | Ag. O |
| CuAg 0,07(OF) | CW0018A | min. max. | Balance, – | 0,06 0,08 | – 0,0005 | – , -(3) | -, – | -, – | – 0,0065 | Ag. O |
| CuAg 0,10(OF) | CW0019A | min. max. | Balance, – | 0,08 0,12 | – 0,0005 | -, -(3) | -, – | -, – | – 0,0065 | Ag. O |
| Cu-PHC | CW0020A | min. max. | 99,95(1), – | -, – | – 0,0005 | – , -(3) | 0,001 0,006 | – 0,005 | – 0,03 | Ag. P |
| Cu-HCP | CW0021A | min. max. | 99,95(1), – | -, – | – 0,0005 | – , -(3) | 0,002 0,007 | – 0,005 | – 0,03 | Ag. P |
At Sumakhsteel, we take great pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With modern production facilities strategically situated across the USA, we maintain an extensive inventory of more than 25,000 tons of top-quality materials kept ready in stock.
Reach out to us for a fast quote tailored to your needs.
Estas Válvulas de Bola de Cobre las suministramos conforme a la Norma DIN, ISO, JIS o ANSI.
Copper Ball Valves applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
Yes, copper ball valves work well for high-temperature uses. Copper offers outstanding thermal conductivity and can endure elevated temperatures without sacrificing strength or integrity. This makes copper ball valves perfect for systems handling hot water, steam, or other high-temperature fluids, such as in HVAC, industrial, and plumbing applications. That said, it’s important to verify the specific temperature ratings supplied by the manufacturer to confirm compatibility with your application.
