Aluminium 5083 Bars They provide essential value across numerous applications thanks to their durability and adaptability. The construction, aerospace and automotive industries depend on them consistently. Compact and adjustable in design, these bars work perfectly for both indoor and outdoor settings. Even in demanding conditions, particular business requirements are readily fulfilled.
| Bar Wire Standard | ASTM B221, B211, B565, B316, AMS 4121 2014 |
| Bar Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |

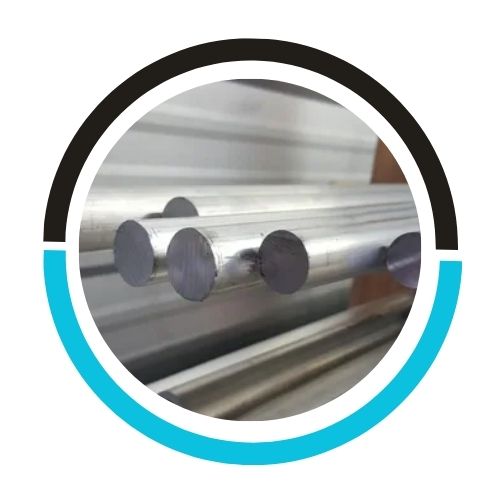

| Round bar size | Diameter: 3-~800mm |
| Hex Bar size | 2-100mm A/F |

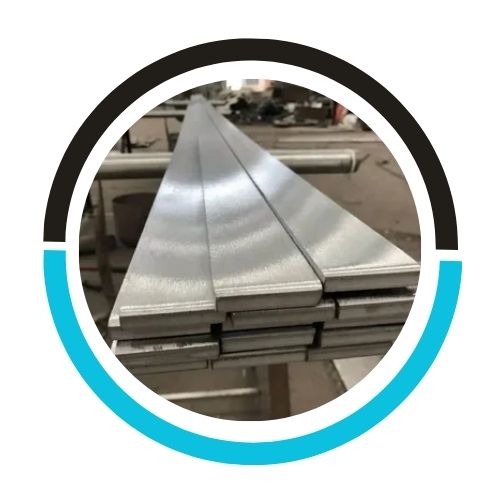

| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Rectangular Size | 33 x 30mm to 295 x 1066mm |
| Bars Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Bar Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Tempers | Tempers range from dead soft annealed to ultra spring temper |
| Rolled Flat Bars Condition | Hardened & tempered, annealed |
| Cold Rolled Bar Technique | Stainless Steel Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Rounds Bar Form | Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Grade | Fe | Si | Mg | Mn | Cu | Zn | Cr | Ti |
| Aluminium 5083 | 0.40 max | 0.40 max | 4.0 / 4.90 | 0.40 / 1.0 | 0.10 max | 0.25 max | 0.05 / 0.25 | 0.15 max |
| Grade | Tensile Strength | Hardness Brinell | Elongation |
| Aluminium 5083 | 275 – 350 MPa | 75 HB | 12 Min % |
At Sumakhsteel, we are proud to be the largest supplier and manufacturer in the USA, delivering advanced solutions for every one of your piping requirements. With modern production facilities strategically situated in the USA, we maintain an extensive inventory of more than 25,000 tons of top-quality materials kept ready in stock.
Reach out to us for a fast quote tailored to your requirement.
We supply these Aluminium 5083 Bars in accordance with DIN, ISO, JIS or ANSI Standard.
Aluminium 5083 Bars play an essential role in petrochemicals, food processing, healthcare, water treatment, pharmaceuticals, power generation, construction, shipbuilding, and agriculture. They guarantee reliable connections in pipelines, uphold hygiene standards, and endure challenging conditions thanks to their corrosion resistance and durability.
Yes Aluminium 5083 bars can also be recycled once they have been used. Recycling aluminium is both efficient and good for the environment, using less energy than manufacturing aluminium from scratch. The process retains the material’s characteristics, such as its strength and resistance to corrosion, meaning recycled Aluminium 5083 bars can be reused in a range of applications across sectors like aerospace, marine, and automotive. By cutting down on waste and conserving resources, recycling aluminium supports sustainability efforts, making it a favoured option for environmentally conscious practices.
