Lock Nuts

Home > Lock Nuts

Lock Nuts Manufacturer and Supplier in California, USA

Lock Nuts Manufacturer and Supplier in California, Lock Nuts Supplier in USA, Lock Nuts Manufacturer in Texas, USA

Explore our product pages to see our extensive selection of Lock Nuts, where you’ll come across a range specifically picked to satisfy the demands of various industries. Lock Nuts are produced to the highest standards to ensure they are extremely resistant to wear and tear and corrosion. So that you enjoy the best experience, we provide flexible options, competitive prices, and quick delivery as a trustworthy supplier. Our Lock Nuts are perfect for construction, infrastructure and industrial applications since they are built to meet and in most cases surpass the industry standards when it comes to reliability and design. Be assured that we deliver only the finest quality work and professional services for your projects.

Lock Nuts Specifications

Product name	Lock Nuts
Size	M2-M60, UNC:1/4”-4”
Length	6mm-500mm
Standard	DIN934 DIN936 DIN439 DIN555 A194 2H ASTM A563
Grade	4, 8, 10, AISI 2, AISI 5, AISI 8
Material	18-8 Stainless Steel, Stainless steel 201, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70; A4-70; A4-80
Thread Requirements	ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge)
Finish	Per ASTM A380/A380M
Manufacturing Process	Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing
Coatings	Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request

Lock Nuts Exporter in California, Lock Nuts Supplier in Texas, Lock Nuts Manufacturer in Texas, Lock Nuts in USA

Lock Nuts Dimensions

Thread size d		M5	M6	M7	M8	M10	M12	M14	M16	M18	M20	M22	M24
		–	–	–	M8x1	M10x1	M12x1,5	M14x1,5	M16x1,5	M18x2	M20x2	M22x2	M24x2
		–	–	–	–	M10x1,25	M12x1,25	–	–	M18x1,5	M20x2	M22x2	–
P		0,8	1	1	1,25	1,5	1,75	2	2	2,5	2,5	2,5	3
da	min.	5	6	7	8	10	12	14	16	18	20	22	24
da	max.	5,75	6,75	7,75	8,75	10,8	13	15,1	17,3	19,5	21,6	23,7	25,9
dw	min.	6,9	8,9	9,6	11,6	15,6	17,4	20,5	22,5	24,9	27,7	29,5	33,2
e	min.	8,79	11,05	12,12	14,38	18,9	21,1	24,49	26,75	29,56	32,95	35,03	29,55
h	max. = nominal size	6,3	8	8,5	9,5	11,5	14	16	18	20	22	25	28
h	min.	6	7,7	8,2	9,14	11,14	13,64	15,3	17,3	19,16	20,7	23,7	26,7
m	min.	4,4	4,9	6,14	6,44	8,04	10,37	12,1	14,1	15,1	16,9	18,1	20,2
m´	min.	3,52	3,92	4,91	5,15	6,43	8,3	9,68	11,28	12,08	13,52	14,48	16,16
s	max. = nominal size	8	10	11	13	17	19	22	24	27	30	32	36
s	min.	7,78	9,78	10,73	12,73	16,73	19,67	21,67	23,67	26,16	29,16	31	35
Weight (7,85 kg/dm3) kg/1000pcs		1,4	3,1	3,2	6	11,7	16,6	21	37,8

Top Lock Nuts Manufacturing Company in California

At Sumakhsteel, we take great pride in being the largest supplier and manufacturer in the USA, delivering advanced solutions for all your piping requirements. With cutting-edge production facilities strategically situated in the USA, we maintain an extensive inventory of more than 25,000 tons of top-quality materials kept ready in stock.

Reach out to us for a fast quote tailored to your requirement.

We supply these Lock Nuts in accordance with DIN, ISO, JIS or ANSI Standard.

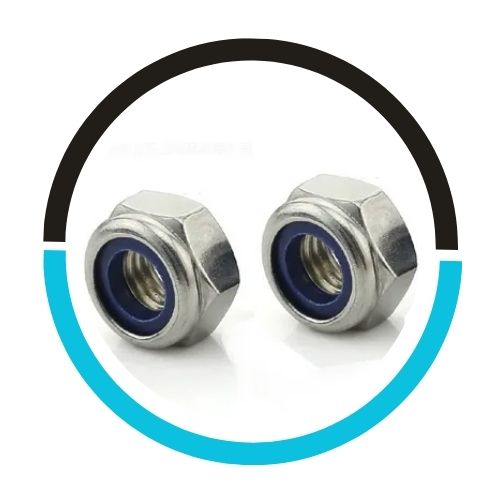

Nylon Insert Lock Nuts Supplier in California, K-Lock Nuts Exporter in Texas, Lock Nuts Manufacturer in Texas, USA

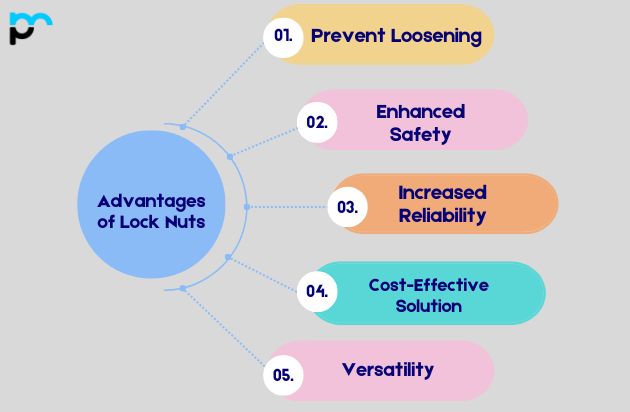

Advantages of Lock Nuts

Prevent Loosening: Lock nuts incorporate certain distinctive features such as nylon inserts, a prevailing torque design, or serration that provide resistance to loosening caused by vibration or torque. This allows the nut to be secured to the proper tension, and once fastened, it will not need to be tightened regularly.
Enhanced Safety: Because lock nuts can keep a firm hold on the fastener, they improve safety across many applications. This dependability helps prevent scenarios where critical components come apart unintentionally or the fasteners loosen and cause an accident or failure.
Increased Reliability: Lock nuts serve as a vital safeguard in industries where consistent performance is essential, such as the automotive, aerospace, and machinery sectors. They ensure that joints remain secure under dynamic conditions and heavy loads, thereby boosting the durability and efficiency of the equipment.
Cost-Effective Solution: This is why employing lock nuts can turn out to be more cost-effective over time. Their capacity to stay tight reduces the frequency of maintenance inspections and replacements, thereby cutting down overall maintenance expenses and time.
Versatility: Manufactured from stainless steel, carbon steel, and alloy steel, lock nuts come in a variety of sizes and shapes to match the application. This makes them adaptable for use across numerous industries and environments, and they cope well with a broad range of torque ratings and operating conditions.

Types of Lock Nuts

Lock Nuts Uses

Application Industry

Lock Nuts have applications as varied as the industries they cater to, led mainly by the aerospace, railway, construction and automotive sectors along with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.

Oil & Gas Industry

Aviation Industry

Petro Chemical Industry

Power Generation Industry

What Are The Considerations For Selecting Lock Nuts?

When choosing Lock Nuts, take into account factors like the application environment (e.g., areas subject to vibration), load demands, material compatibility with the parts they join, and the particular locking method (e.g., nylon insert, prevailing torque, or mechanical). These considerations guarantee ideal performance, longevity, and reliable fastening across a range of industrial and construction applications.

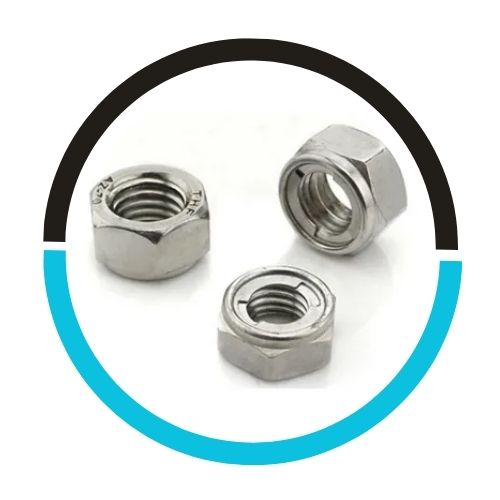

2 Way Lock Nuts Supplier in Texas, Lock Nuts Exporter in California, Lock Nuts Manufacturer in Texas, USA
